PowerLine Saves Money

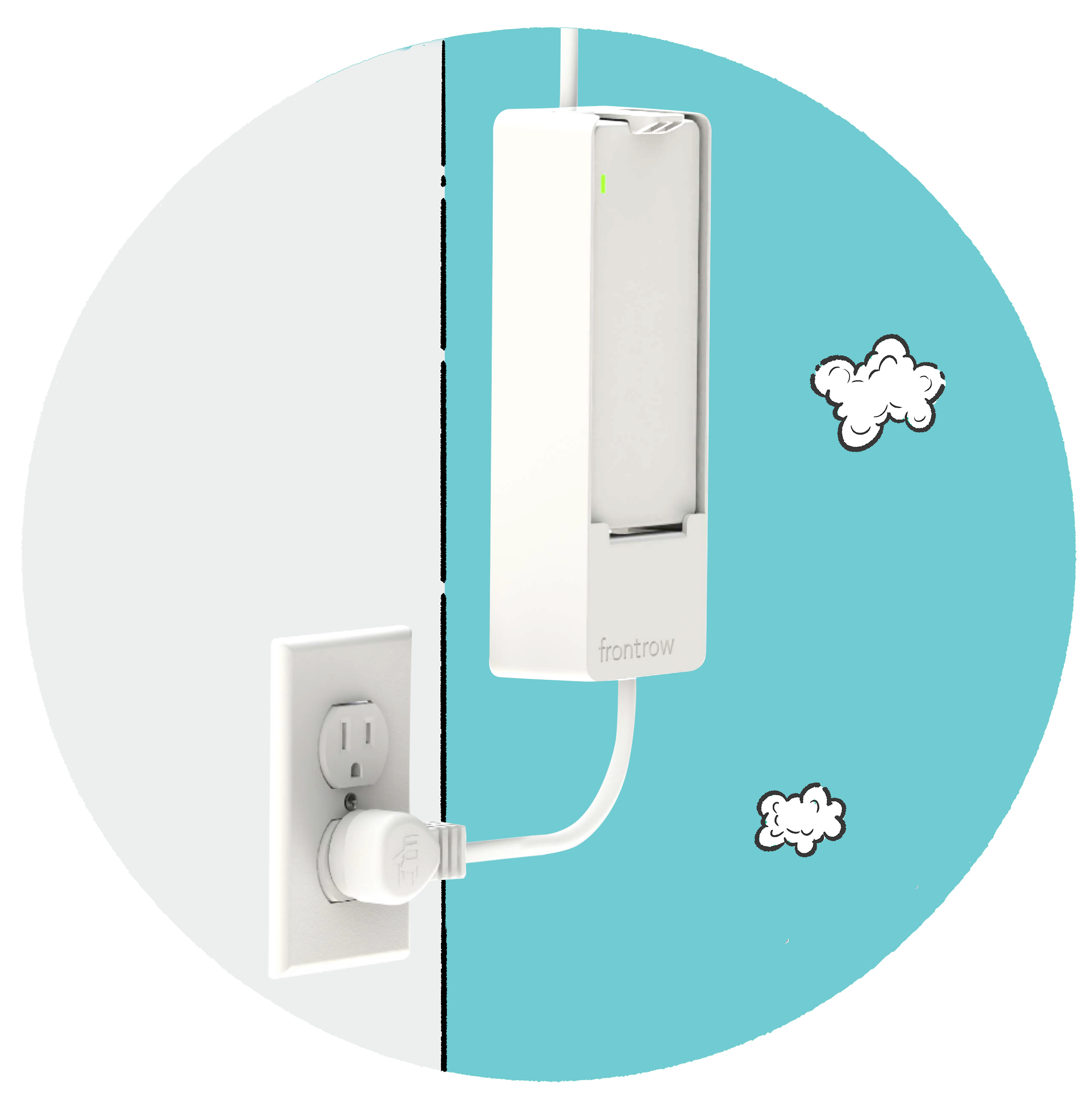

PowerLine simplifies your classroom AV retrofit project, reducing schedule complexity and saving money by eliminating the need for a separate electrical contractor to install outlets in the ceiling or wall. No need to buy POE injectors or upgrade your electrical panels. Simply hang the ezRoom enclosure, plug PowerLine into an existing outlet and connect the Cat5e cable to the ezRoom.
PowerLine Key Features
Save Hundreds Per Room
Great for Retrofit Projects
Clean and Easy Installation
ezRoom Compatible
Included with PowerLine

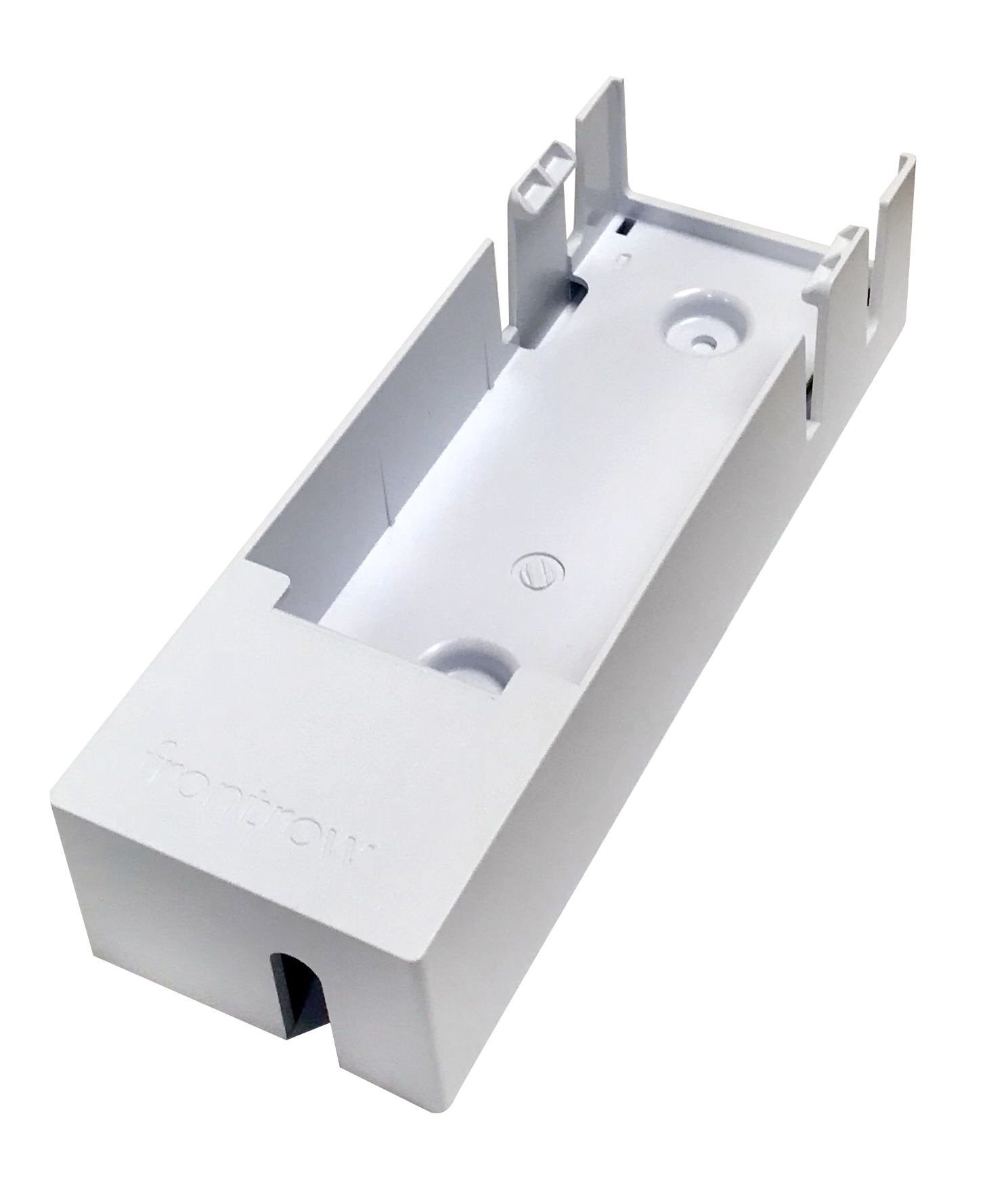

Powerline Caddy and Cover
AC to DC Power Supply

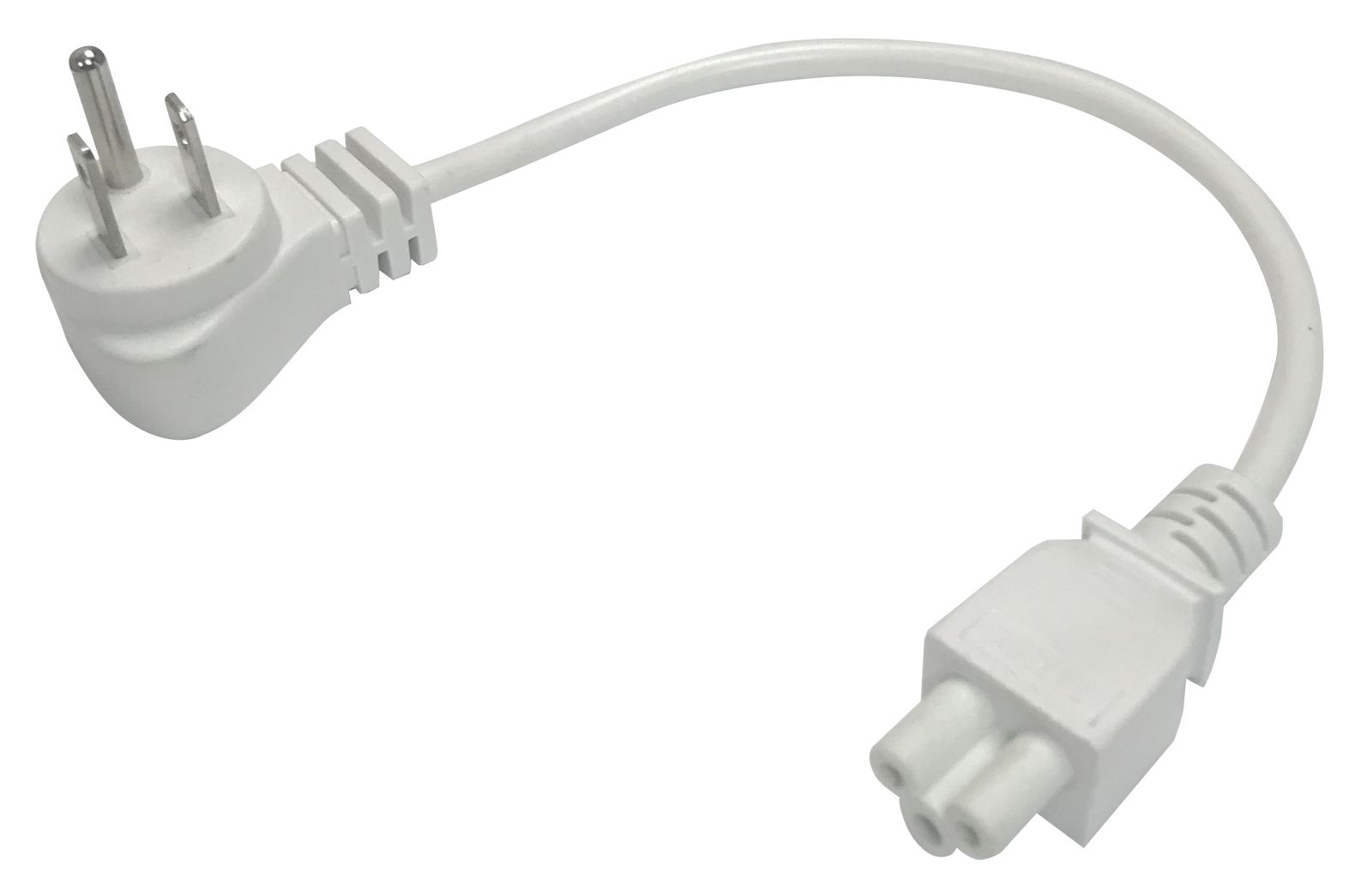

AC Cable

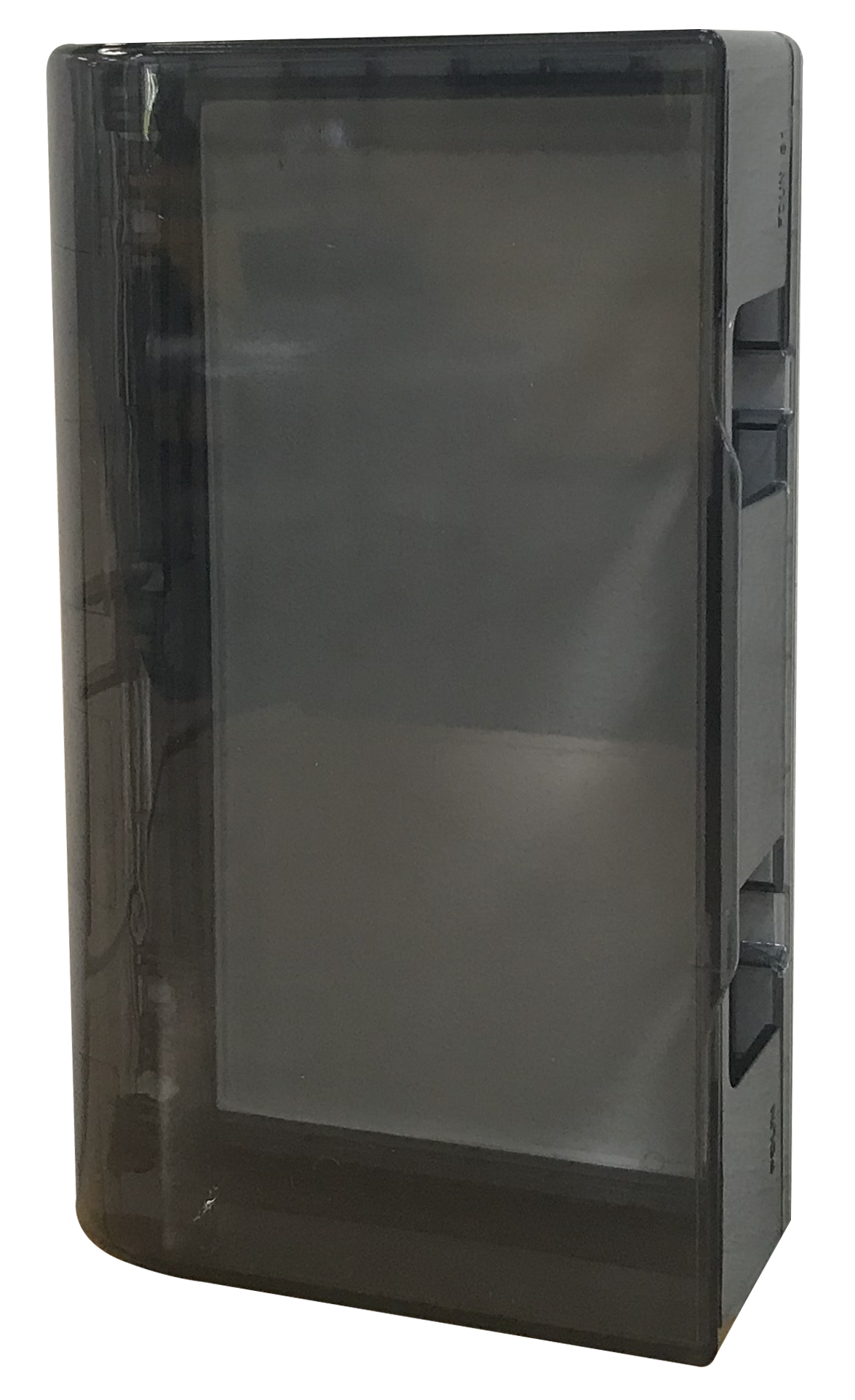

Duplex Outlet Cover
(Available 2024)

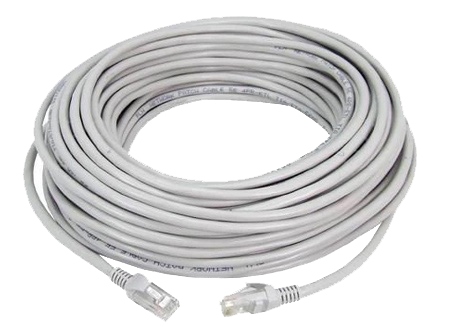

Plenum Rated Cat5e Cable
* When pre-installed in ezRooms, includes PowerLine Adapter for connecting ezRoom components.
* Does not include installation hardware for mounting the caddy.
PowerLine Specifications
| Input Power | 110V - 220V AC |
| Output Power | 48VDC / 90W / 1.875A |
| AC Cable |
US/CA - Type B Plug (outlet side) to C5 (power supply side), 1ft, white |
| Cat5e Cable | 50ft / 15m, plenum, white |
| Distance | Up to 100ft / 30.5m to ezRoom |
| Regulatory | ETL Certified to meet UL requirements, FCC, IC |
